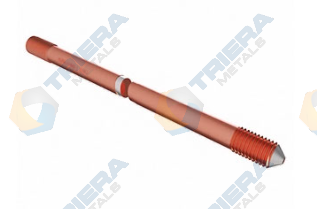

Solid Copper Earth Rods (Externally Threaded)
Designed for environments with challenging soil conditions, such as high salt or moisture content, where superior corrosion resistance and durability are essential. These rods are crafted from high-conductivity, hard-drawn copper, conforming to BS2874 C101 standards. The threads are created using a roll threading technique to provide enhanced strength and minimize the risk of chipping during installation, ensuring reliable performance over time.
Material: Copper
| CODE NO. | ROD DIA MM | TOTAL LENGTH | THREAD DIA Unthreaded |
| Triera-SC-12.7-1.2 | 12.7 | 1200 | 8 mm |
| Triera-SC-12.7-1.5 | 12.7 | 1500 | 8 mm |
| Triera-SC-12.7-1.8 | 12.7 | 1800 | 8 mm |
| Triera-SC-12.7-2.4 | 12.7 | 2400 | 8 mm |
| Triera-SC-12.7-3.0 | 12.7 | 3000 | 8 mm |
| Triera-SC-14.2-1.2 | 14.2 | 1200 | 10 mm |
| Triera-SC-14.2-1.5 | 14.2 | 1500 | 10 mm |
| Triera-SC-14.2-1.8 | 14.2 | 1800 | 10 mm |
| Triera-SC-14.2-2.4 | 14.2 | 2400 | 10 mm |
| Triera-SC-14.2-3.0 | 14.2 | 3000 | 10 mm |
| Triera-SC-17.2-1.2 | 17.2 | 1200 | 10 mm |
| Triera-SC-17.2-1.5 | 17.2 | 1500 | 10 mm |
| Triera-SC-17.2-1.8 | 17.2 | 1800 | 10 mm |
| Triera-SC-17.2-2.4 | 17.2 | 2400 | 10 mm |
| Triera-SC-17.2-3.0 | 17.2 | 3000 | 10 mm |
