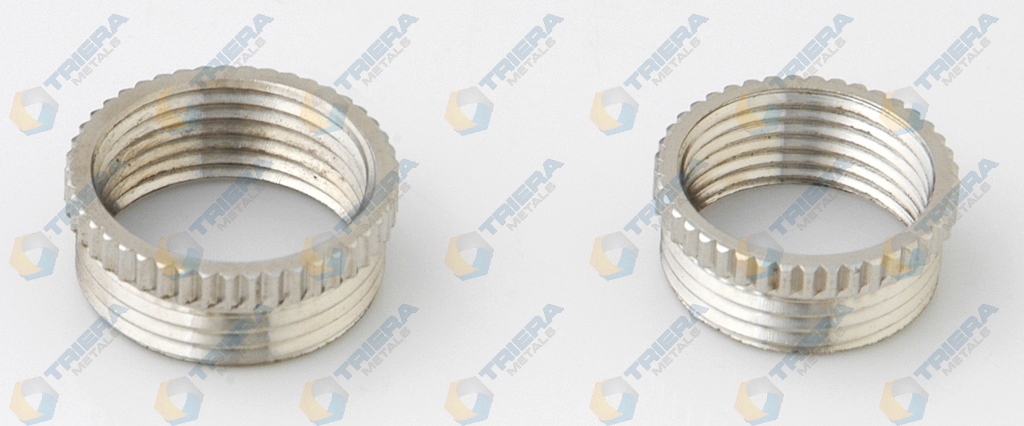

Reducer
At Triera Metals, we specialize in manufacturing a wide range of reducers designed for industrial and hazardous area applications. These reducers ensure efficient connections between cable entry devices and equipment with differing thread types. Engineered for compatibility, our reducers provide a seamless solution for connecting dissimilar threads.
Type of Reducers
- Round Reducer

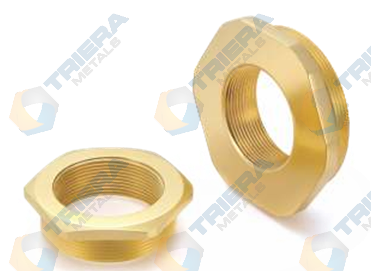

- Hex Reducer
- Enlarging Reducer
Thread Availability
- All kind of threading options as required are available:
- PG, Metric and NPT

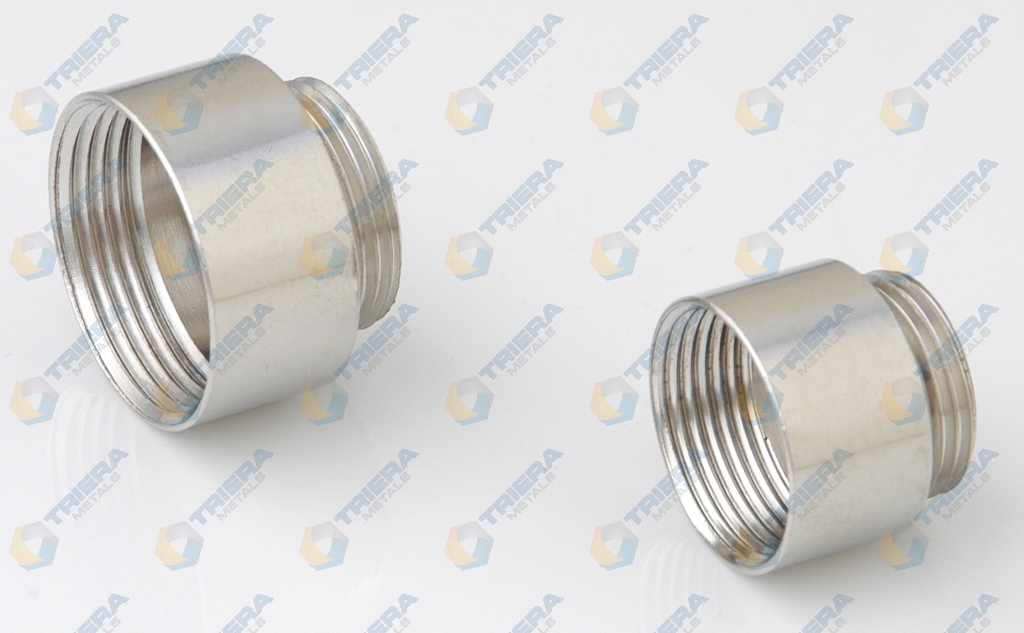

Adaptor
Triera Metals provides a comprehensive selection of adaptors designed for industrial and hazardous area applications. These adaptors facilitate reliable connections between cable entry devices and equipment with mismatched thread sizes. Specifically, adaptors are utilized when the thread size of the cable gland or connection device is equal to or larger than the enclosure's entry thread, ensuring seamless integration and functionality.
Type of Adaptors
- Round Adaptors

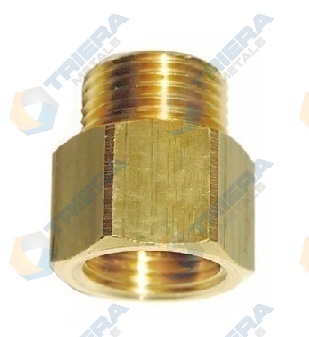

- Hex Adaptors
Thread Availability
- All kind of threading options as required are available:
- PG, Metric and NPT
Stop Plug
Stop plugs play a vital role in preserving the integrity of enclosures and maintaining the IP rating of equipment. They are commonly manufactured from materials such as brass, nickel-plated brass, mild steel, and nylon.
Type of Stop Plugs

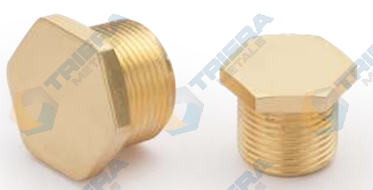

- Hex Plug

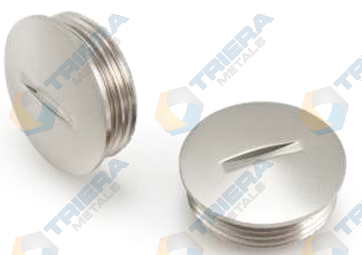

- Slotted Round Type Plug
- Collar Type Plug
- Allen Key Type Plug
Thread Availability
- Additionally, a wide range of threading options can be customized to meet specific requirements.

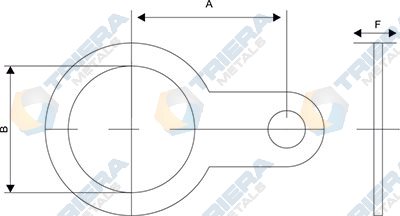

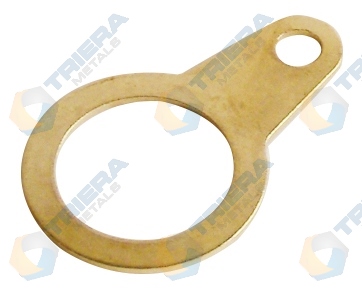

Earth Tags
Material & Finish
Applications
| METRIC CODE | SIZE | NPT CODE | SIZE | A | B | (NPT) ‘B’ | F |
| ET-1M | M20 | MM-ET-1N | 1/2″NPT | 27 | 21 | 22 | 1.5 |
| ET-2M | M25 | MM-ET-2N | 3/4″NPT | 33 | 27 | 27 | 1.5 |
| ET-3M | M32 | MM-ET-3N | 1″NPT | 36 | 34 | 34 | 1.5 |
| ET-4M | M40 | MM-ET-4N | 1.1/4″NPT | 44 | 41 | 43 | 1.5 |
| ET-5M | M50 | MM-ET-5N | 1.1/2″NPT | 50 | 51 | 49 | 1.5 |
| ET-6M | M63 | MM-ET-6N | 2″NPT | 65 | 64 | 61 | 1.5 |
| ET-7M | M75 | MM-ET-7N | 2.1/2″NPT | 58 | 77 | 77 | 1.5 |
| ET-8M | M90 | MM-ET-8N | 3″NPT | 71 | 91 | 89 | 1.5 |
| ET-9M | M100 | MM-ET-9N | 4″NPT | 81 | 101 | 115 | 1.5 |

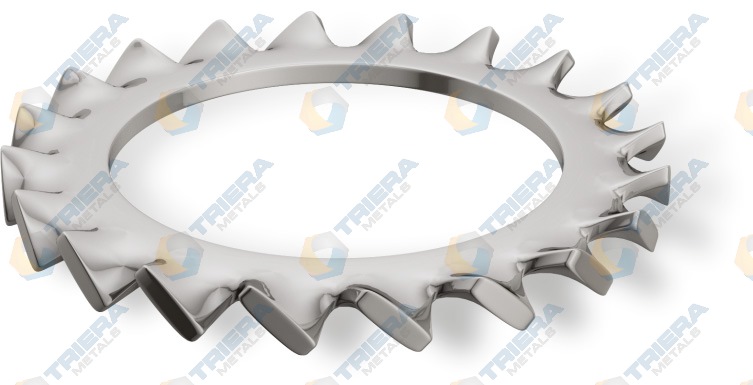

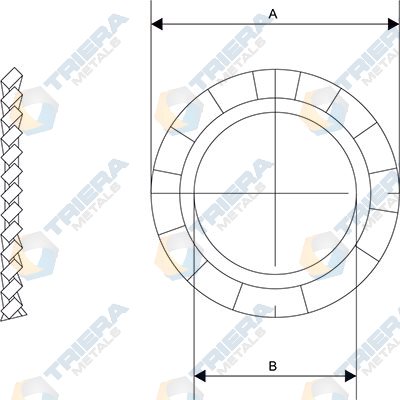

Serrated Washer External
Material & Finish
Applications

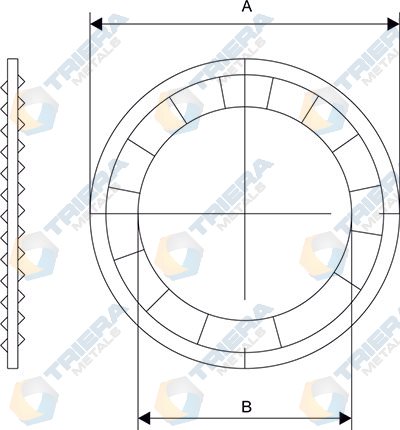

| METRIC CODE | SIZE | A | B |
| SW-M16E | M16 | 26.00 | 17.00 |
| SW-M20E | M20 | 33.00 | 21.00 |
| SW-M25E | M25 | 38.00 | 25.00 |
| SW-M32E | M32 | 48.00 | 33.00 |
| SW-M40E | M40 | 58.00 | 40.00 |
| SW-M50E | M50 | 66.00 | 50.00 |
| SW-M63E | M63 | 80.00 | 63.00 |
| SW-M75E | M75 | 95.00 | 75.00 |
| SW-M90E | M90 | 110.00 | 90.00 |
| SW-M100E | M100 | 130.00 | 100.00 |

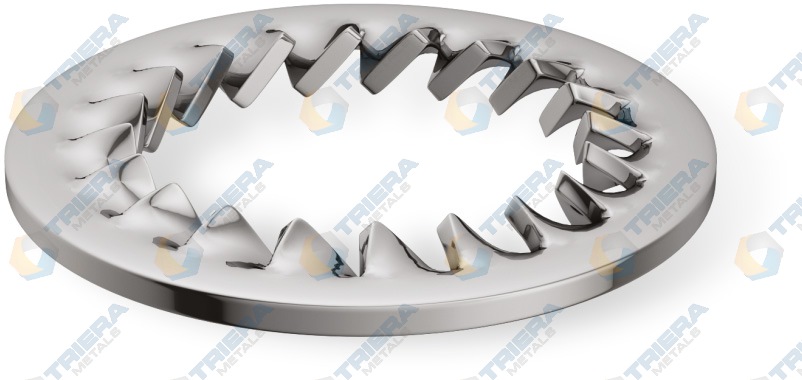

Serrated Washer Internal
Material & Finish
Applications
| METRIC CODE | SIZE | A | B |
| SW-M20I | M20 | 32.50 | 20.50 |
| SW-M25I | M25 | 38.00 | 25.50 |
| SW-M32I | M32 | 48.00 | 33.00 |
| SW-M40I | M40 | 58.00 | 40.50 |
| SW-M50I | M50 | 66.00 | 50.50 |
| SW-M63I | M63 | 80.00 | 63.50 |
| SW-M75I | M75 | 95.00 | 75.50 |
| SW-M90I | M90 | 110.00 | 90.50 |
| SW-M100I | M100 | 130.00 | 100.50 |
