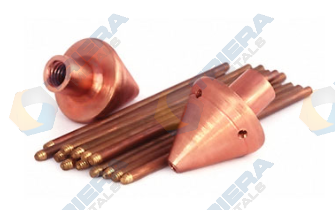

Copper Bonded Earth Rods and Fittings
Crafted from high-tensile low carbon steel, these earth rods are engineered by molecularly bonding 99.9% pure electrolytic copper, meeting the standards of BS 4360 grade 43A. To prevent copper oxidation, each rod is treated with Benzol Triozole derivatives. The threads are precisely formed through a roll threading process, preserving the integrity of the molecular copper bond along the entire thread length. These rods are designed for easy installation, either manually or with a power hammer for deeper penetration.
Material: MS Copper Bonded
| CODE NO. | ROD DIA MM | TOTAL LENGTH | THREAD DIA |
| Triera-CB-9.5-1.2 | 9.5 | 1200 | Unthreaded |
| Triera-CB-12.7-1.2 | 12.7 | 1200 | 9/16" |
| Triera-CB-12.7-1.5 | 12.7 | 1500 | 9/16" |
| Triera-CB-12.7-1.8 | 12.7 | 1800 | 9/16" |
| Triera-CB-12.7-2.4 | 12.7 | 2400 | 9/16" |
| Triera-CB-12.7-3.0 | 12.7 | 3000 | 9/16" |
| Triera-CB-14.2-12.5 | 14.2 | 1200 | 5/8" |
| Triera-CB-14.2-1.5 | 14.2 | 1500 | 5/8" |
| Triera-CB-14.2-1.8 | 14.2 | 1800 | 5/8" |
| Triera-CB-14.2-2.4 | 14.2 | 2400 | 5/8" |
| Triera-CB-14.2-3.0 | 14.2 | 3000 | 5/8" |
| Triera-CB-17.2-1.2 | 17.2 | 1200 | 3/4" |
| Triera-CB-17.2-1.5 | 17.2 | 1500 | 3/4" |
| Triera-CB-17.2-1.8 | 17.2 | 1800 | 3/4" |
| Triera-CB-17.2-2.4 | 17.2 | 2400 | 3/4" |
| Triera-CB-17.2-3.0 | 17.2 | 3000 | 3/4" |
| Triera-CB-25-2.4 | 25.0 | 2400 | Unthreaded |
| Triera-CB-25-3.0 | 25.0 | 3000 | Unthreaded |
