Copper 4-Hole Cable Lugs are made from premium electrolytic copper and are offered in both bare and tin-plated finishes. These heavy-duty copper tubes are precisely pressed, forged, and machined to meet specific size and shape requirements. Designed with four stud holes, these lugs are ideal for securely connecting cables to transformer terminals, ensuring a robust and dependable connection.
- Material: Cable Lugs Manufactured from Electrolytic Copper
- Range: The cable range spans from 400 to 1000 mm², available with various stud hole configurations to accommodate diverse application needs.
- Finish: Lead Free Electro Tin Plated to prevent atmospheric corrosion
- Application : Used for termination of copper conductors to transformers.
| Cable Size mm2 |
Stud Hole Size mm |

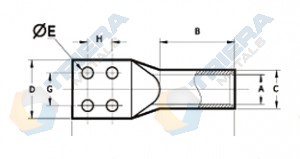

Copper 4 Hole lugs mm | ||||||
| A | C | B | D | H | G | L | ||
| 400 | 8.5 | 28.5 | 36.5 | 44.0 | 52.5 | 25.0 | 35.0 | 114.0 |
| 400 | 10.5 | 28.5 | 36.5 | 44.0 | 52.5 | 25.0 | 35.0 | 114.0 |
| 500 | 8.5 | 30.0 | 39.0 | 48.0 | 56.0 | 25.0 | 35.0 | 124.0 |
| 500 | 10.5 | 30.0 | 39.0 | 48.0 | 56.0 | 25.0 | 35.0 | 124.0 |
| 630 | 8.5 | 35.0 | 45.0 | 56.0 | 65.0 | 25.0 | 35.0 | 144.0 |
| 630 | 10.5 | 35.0 | 45.0 | 56.0 | 65.0 | 25.0 | 35.0 | 144.0 |
| 800 | 8.5 | 39.0 | 50.6 | 78.0 | 72.0 | 25.0 | 35.0 | 170.0 |
| 800 | 10.5 | 39.0 | 50.6 | 78.0 | 72.0 | 25.0 | 35.0 | 170.0 |
| 1000 | 8.5 | 43.0 | 56.2 | 90.0 | 78.5 | 25.0 | 35.0 | 200.0 |
| 1000 | 10.5 | 43.0 | 56.2 | 90.0 | 78.5 | 25.0 | 35.0 | 200.0 |
