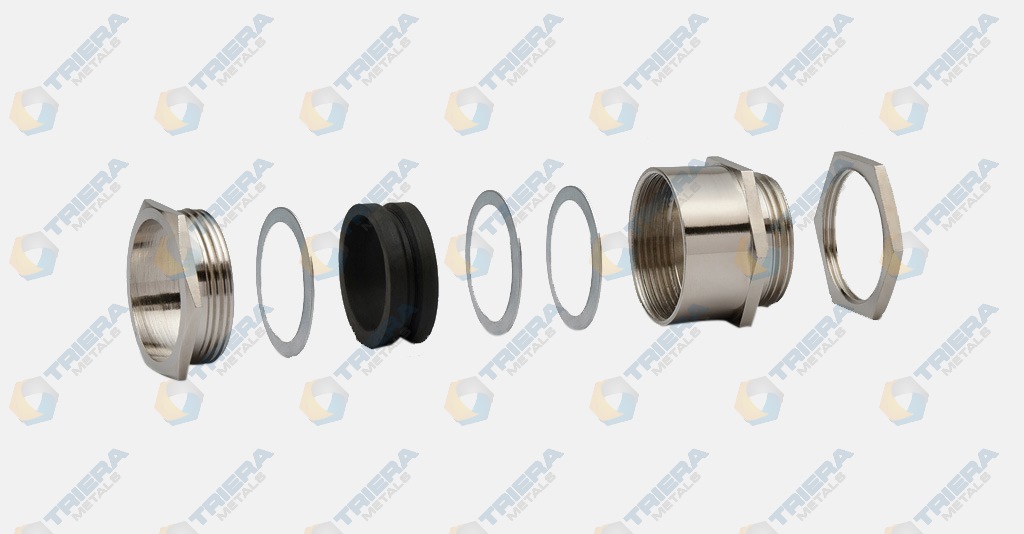

These versatile cable glands are ideal for indoor and outdoor use with both armoured and unarmoured cables. They ensure a secure environmental seal on the cable's outer sheath while delivering reliable mechanical retention. Additionally, they enable electrical continuity through effective termination of armour wires.
| Technical Details | |
| SINGLE COMPRESSION CABLE GLANDS | |
| Type: | SINGLE COMPRESSION) |
| Design Specification: | IS 12943 : 1990 (IP – 55) |
| Threads: | E.T., NPT & METRIC |
| Gland Material: | Electro Nickel Plated Brass(general) |
| Seal Material: | Natural Rubber |
| Accessories (optional): | Shroud, Earth Tag, Blank plugs, Adapter/Reducer, Entry Thread Seal |
Part Number Details:
|
|

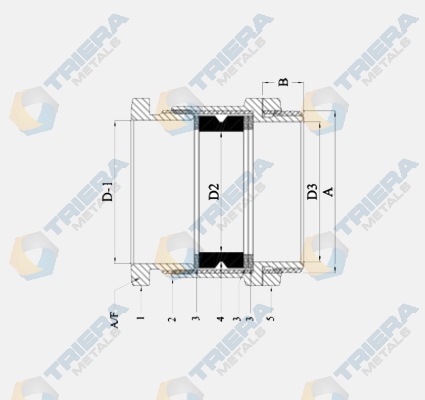

| GLAND SELECTION CHART | ||||||
| GLAND SIZE | D1 | D2 | D3 | ENTRY “A”(THREAD) | LENGTH “B” | A/F. |
| 3/8″(10 mm) | 12.70 | 10.40 | 12.70 | 5/8″ ET | 6.50 | 18.00 |
| 1/2″(12 mm) | 15.40 | 12.50 | 12.70 | 5/8″ ET | 7.00 | 19.80 |
| 5/8″(16 mm) | 15.40 | 12.50 | 15.60 | 3/4″ ET | 7.00 | 19.80 |
| 3/4″(19 mm) | 17.80 | 14.50 | 15.60 | 3/4″ ET | 7.50 | 22.20 |
| 7/8″(22 mm) | 20.70 | 18.00 | 15.60 | 3/4″ ET | 7.50 | 24.50 |
| 1″(25 mm) | 23.60 | 19.00 | 21.60 | 1″ ET | 7.50 | 28.00 |
| 1.1/8″(28 mm) | 28.00 | 24.00 | 24.60 | 1.1/8″ ET | 8.00 | 33.00 |
| 1.1/4″(32 mm) | 31.30 | 27.50 | 27.70 | 1.1/4″ ET | 8.50 | 36.00 |
| 1.3/8″(35 mm) | 35.80 | 31.50 | 29.70 | 1.3/8″ ET | 9.00 | 40.50 |
| 1.1/2″(38 mm) | 38.30 | 33.00 | 33.50 | 1.1/2″ ET | 9.50 | 44.50 |
| 1.3/4″(45 mm) | 44.30 | 39.00 | 40.30 | 1.3/4″ ET | 10.00 | 50.00 |
| 2″(50 mm) | 51.80 | 46.50 | 45.50 | 2″ ET | 10.00 | 57.00 |
| 2.1/4″(57 mm) | 57.80 | 49.50 | 52.30 | 2.1/4″ ET | 11.00 | 63.00 |
| 2.1/2″(63 mm) | 62.70 | 55.50 | 58.40 | 2.1/2″ ET | 12.00 | 70.00 |
| 2.3/4″(70 mm) | 69.00 | 61.00 | 63.00 | 2.3/4″ ET | 12.00 | 75.00 |
| 3″(75 mm) | 75.70 | 65.50 | 70.50 | 3″ ET | 12.00 | 83.00 |
| 3.1/4″(82 mm) | 82.00 | 74.00 | 76.50 | 3.1/4″ET | 12.00 | 89.00 |
| 3.1/2″(88 mm) | 85.00 | 78.00 | 83.00 | 3.1/2″ ET | 12.00 | 95.00 |
| 4″(100 mm) | 100.00 | 90.00 | 92.00 | 4″ ET | 12.00 | 108.00 |
