These indoor and outdoor cable glands are for use with all types of Armoured & un-armoured cables, providing environmental seal for outer Sheath of cables. The Cable Glands also provides mechanical cable retention and electrical continuity via armour wire termination.

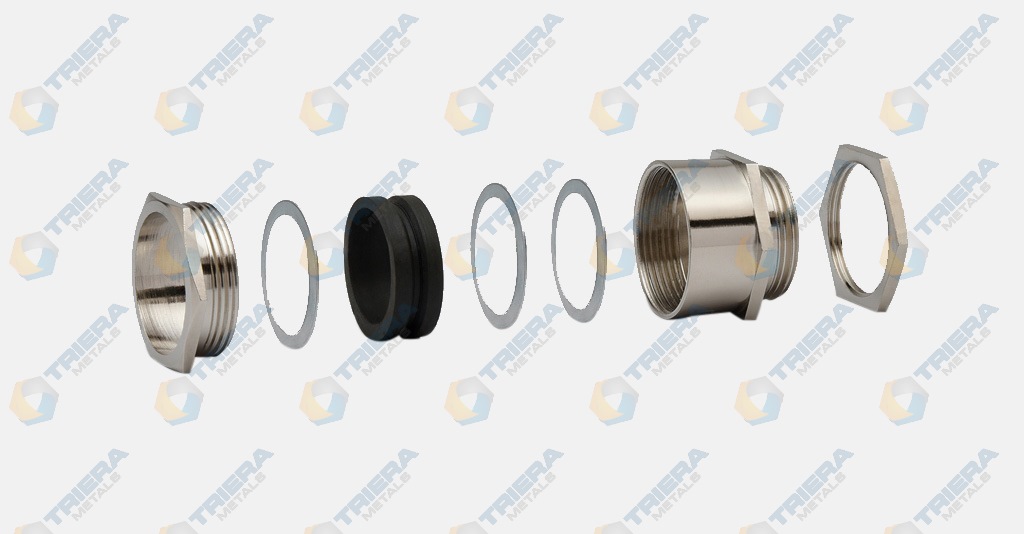

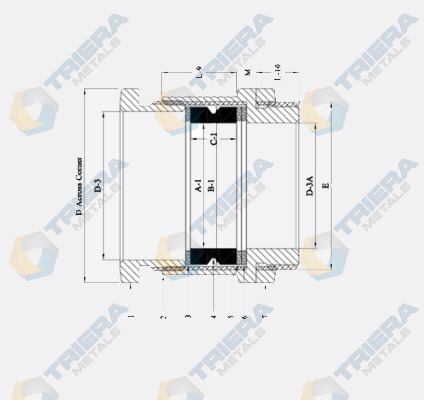

| Technical Details | |
| IGB (S.C. - HEAVY DUTY) CABLE GLANDS | |
| Type: | SINGLE COMPRESSION (HEAVY DUTY) |
| Design Specification: | IP 66 (IS 12063:1987 / IEC 60529:1989) |
| Gland Material: | Electro Nickel Plated Brass (general) |
| Seal Material: | NEOPRENE RUBBER |
| Accessories (optional): | Shroud, Earth Tag, Blank plugs, Adapter / Reducer, Entry Thread Seal |
| Part Number Details: 1. Compression Nut 2. Gland Body 3. Support Washer (MS) 4. Rubber Seal 5.Support Washer (MS) 6. Support Washer (MS) 7. Lock Nut |
Protection Class: IP – 66 Design Specification: BS-6121 |
| GLAND SELECTION TABLE | ||||||||||||
| GLAND REF | E E.T. Threads | D-3 Max | D-3A Max | D Max. | A/F Max. | L-9 Max. | L-10 Max. | M Max. | RUBBER REF. | A-1 | B-1 | C-1 |
| HEAVY DUTY SC-1216 | 5/8″ | 16 | 12 | 25.50 | 22 | 15 | 9 | 3 | R-1212 | 12 | 18 | 8 |
| HEAVY DUTY SC-1616 | 5/8″ | 19 | 12 | 29.50 | 25.50 | 15 | 9.50 | 3.50 | R-1611 | 11 | 20.50 | 9 |
| HEAVY DUTY SC-1619 | 3/4″ | 19 | 15 | 29.50 | 25.50 | 15 | 9.50 | 3.50 | R-1613 | 13 | 20.50 | 9 |
| R-1615 | 15 | |||||||||||
| HEAVY DUTY SC-2119 | 3/4″ | 24 | 15 | 36.50 | 31.50 | 18 | 9.50 | 3.50 | R-2116 | 16 | 26 | 11 |
| HEAVY DUTY SC-2125 | 1″ | 24 | 21 | 36.50 | 31.50 | 18 | 9.50 | 3.50 | R-2118 | 18 | 26 | 11 |
| R-2120 | 20 | |||||||||||
| HEAVY DUTY SC-2925 | 1″ | 33 | 21 | 47 | 41.00 | 21 | 10 | 4 | R-2921 | 21 | 35 | 12 |
| HEAVY DUTY SC-2932 | 1.1/4″ | 33 | 27 | 47 | 41.00 | 21 | 10 | 4 | R-2923 | 23 | 35 | 12 |
| HEAVY DUTY SC-2938 | 1.1/2″ | 33 | 32 | 47 | 41.00 | 21 | 10 | 4 | R-2925 | 25 | 35 | 12 |
| R-2927 | 27 | |||||||||||
| R-2929 | 29 | |||||||||||
| HEAVY DUTY SC-3632 | 1.1/4″ | 41 | 26 | 59 | 51 | 22.50 | 11 | 4.50 | R-3631 | 31 | 45 | 14 |
| HEAVY DUTY SC-3638 | 1.1/2″ | 41 | 32 | 59 | 51 | 22.50 | 11 | 4.50 | R-3633 | 33 | 45 | 14 |
| R-3635 | 35 | |||||||||||
| R-3637 | 37 | |||||||||||
| HEAVY DUTY SC-4238 | 1.1/2″ | 47 | 32 | 71 | 61.50 | 26 | 12 | 5.50 | R-4236 | 36 | 52 | 17 |
| HEAVY DUTY SC-4251 | 2″ | 47 | 44.50 | 1 | 61.50 | 26 | 12 | 5.50 | R-4238 | 38 | 52 | 17 |
| R-4240 | 40 | |||||||||||
| R-4242 | 42 | |||||||||||
| HEAVY DUTY SC-5451 | 2″ | 56 | 44.50 | 80 | 69 | 27 | 12 | 6 | R-5444 | 44 | 59 | 18 |
| HEAVY DUTY SC-5463 | 2.1/2″ | 56 | 55 | 80 | 69 | 27 | 12 | 6 | R-5446 | 46 | 59 | 18 |
| R-5448 | 48 | |||||||||||
| R-5450 | 50 | |||||||||||
| HEAVY DUTY SC-6063 | 2.1/2″ | 64 | 55 | 92 | 0.00 | 31 | 12 | 6.50 | R-6053 | 53 | 68 | 18 |
| R-6055 | 55 | |||||||||||
| R-6058 | 58 | |||||||||||
| R-6060 | 60 | |||||||||||
| HEAVY DUTY SC-6675 | 3″ | 68 | 66 | 100 | 87.00 | 33 | 13 | 7 | R-6662 | 62 | 72 | 18 |
| R-6664 | 64 | |||||||||||
| R-6668 | 68 | |||||||||||
| HEAVY DUTY SC-7882 | 3.1/4″ | 82 | 72 | 116 | 100.50 | 33 | 14 | 8 | R-7870 | 70 | 88 | 20 |
| R-7874 | 74 | |||||||||||
| R-7877 | 77 | |||||||||||
| HEAVY DUTY SC-8490 | 3.1/2″ | 91 | 81 | 124 | 107.50 | 30 | 19 | 8 | R-8484 | 84 | 97 | 20 |
| HEAVY DUTY SC-9210 | 4″ | 98 | 91 | 135 | 117 | 32 | 20 | 8 | R-9292 | 92 | 105 | 20 |
| HEAVY DUTY SC-1011 | 4.1/4″ | 107 | 100 | 146 | 126.50 | 32 | 25 | 9 | R-1100 | 100 | 114 | 20 |
| HEAVY DUTY SC-1525 | 5″ | 118 | 113 | 164 | 142 | 32 | 25 | 10 | R-1115 | 127 | ||
