These indoor and outdoor cable glands are for use with all types of armoured & un-armoured cables, providing environmental seal for inner & outer sheath of cables. The Cable Glands also provides mechanical cable retention and electrical continuity via armour wire termination. A detachable armour cone and anyway universal clamping ring arrangement allows the cable to be easily disconnected from the equipment, for maintenance and change out etc.
| Technical Details | |
| FLAME-PROOF / WEATHER-PROOF DOUBLE COMPRESSION CABLE GLANDS (LONG THREADS) | |
| Type: | CGF (Double Compression) |
| Design Specification: | IS IEC 60079-1:2007[FLAME-PROOF IIA & IIB] |
| Threads: | E.T., NPT,METRIC & PG |
| Operating Temperature: | -30`C to + 100`C |
| Protection Class: | IP 66 |
| Gland Material: | Electro Nickel Plated Brass(general)Material option: Stainless steel, Mild steel & Aluminum Plating options: Chrome, Tin, Zinc |
| Seal Material: | Neoprene Rubber |
| Accessories (optional): | Shroud, Earth Tag, Blank plugs Adaptor / Reducer, Entry Thread Seal |
Part Number Details:
|
|

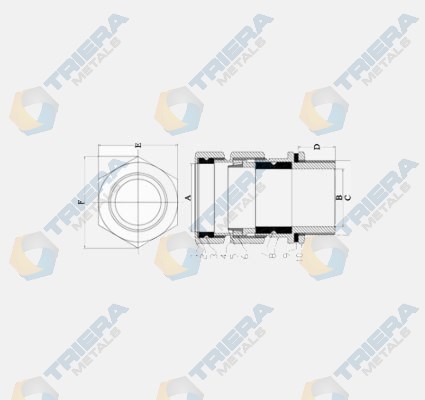

| GLAND SELECTION CHART | ||||||
| GLAND SIZE | DIA. A”(Max. – Min.) | DIA. “B”(Max. – Min.) | ENTRY THREADS”C” | LENGTH “D”(Max.) | FLAT “E” (Max.) | CORNER “f” (Max.) |
| Triera 01SS | 13.00 – 8.50 | 8.50 – 6.50 | 3/4″ | 25 | 22 | 25.4 |
| Triera 01S | 16.50 – 13.00 | 11.00 – 7.50 | 3/4″ | 25 | 25 | 29 |
| Triera 01 | 19.50 – 15.00 | 14.00 – 9.00 | 3/4″ | 25 | 28 | 32 |
| Triera 01A | 19.50 – 15.00 | 14.00 – 11.00 | 1″ | 25 | 28 | 32 |
| Triera 02 | 21.00 – 16.50 | 14.50 – 11.50 | 1″ | 25 | 31.5 | 36.5 |
| Triera 02A | 21.00 – 16.50 | 14.50 – 12.00 | 3/4″ | 25 | 31.5 | 36.5 |
| Triera 03 | 23.00 – 17.00 | 18.00 – 14.00 | 1″ | 25 | 32 | 37 |
| Triera 04 | 27.00 – 22.00 | 20.00 – 16.50 | 1″ | 25 | 38 | 44 |
| Triera 04A | 27.00 – 22.00 | 20.00 – 16.50 | 1.1/4″ | 25 | 38 | 44 |
| Triera 05 | 31.00 – 24.00 | 24.00 – 16.00 | 1.1/4″ | 25 | 41 | 47 |
| Triera 05A | 31.00 – 24.00 | 24.00 – 16.00 | 1.1/2″ | 25 | 41 | 47 |
| Triera 06 | 33.00 – 27.00 | 28.00 – 24.00 | 1.1/2″ | 25 | 46 | 52.5 |
| Triera 06A | 33.00 – 27.00 | 28.00 – 24.00 | 1.1/4″ | 25 | 46 | 52.5 |
| Triera 07 | 37.00 – 30.00 | 31.00 – 25.00 | 1.1/2″ | 25 | 52 | 59.5 |
| Triera 08 | 42.00 – 35.00 | 35.00 – 29.00 | 2″ | 25 | 56 | 64 |
| Triera 09 | 46.00 – 37.00 | 41.00 – 32.00 | 2″ | 25 | 59 | 67 |
| Triera 010 | 53.00 – 45.00 | 44.00 – 39.00 | 2″ | 25 | 67.5 | 77 |
| Triera 010A | 53.00 – 45.00 | 44.00 – 39.00 | 2.1/2″ | 25 | 67.5 | 77 |
| Triera 011 | 61.00 – 52.00 | 54.00 – 42.00 | 2.1/2″ | 25 | 80 | 92 |
| Triera 012 | 68.00 – 58.00 | 60.00 – 51.00 | 3″ | 25 | 85 | 98 |
| Triera 013A | 73.00 – 62.00 | 64.00 – 59.00 | 3″ | 25 | 97 | 112 |
| Triera 013 | 78.00 – 68.00 | 70.00 – 62.00 | 3.1/4″ | 25 | 99 | 114 |
| Triera 014 | 85.00 – 72.00 | 79.00 – 69.00 | 3.1/2″ | 25 | 108 | 125 |
| Triera 015 | 94.00 – 81.00 | 88.00 – 76.00 | 4″ | 25 | 117 | 135 |
| Triera 016 | 105.00 – 92.00 | 98.00 – 88.00 | 4.1/2″ | 25 | 130 | 150 |
