Manufacturing Company in Brass Industry Since 2000
We are India's leading manufacturer, supplier, and exporter of CW Cable Glands.
| Technical Details | |

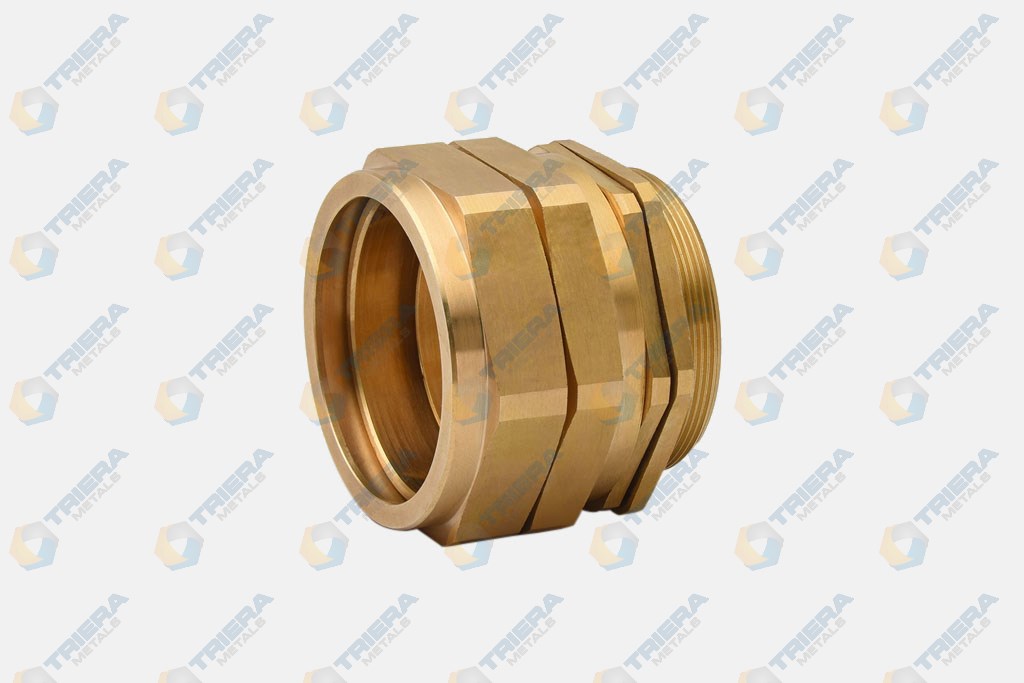

| CW 4PT CABLE GLAND | |
| Cable Types | SWA (Single Wire Armoured Cables) , AWA (Aluminium Wire Armoured Cables) |
| Application | Glands for use with all types of SWA cable. Used in applications where it is essential to provide an IP66 seal on the outer sheath |
| IP Rating | IP66 |
| Option Thread | Metric, NPT, BSP & PG |
| Gland Material | Brass (CuZn39Pb3) |
| Sealing Type | Weakback Sealing |
| Operating Temperature | (Nitrile): NBR -20°C to +80°C |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |
| Accessories | PVC Shroud, LSF Shroud, Lock Nut, Earth Tag, Serrated Washer |

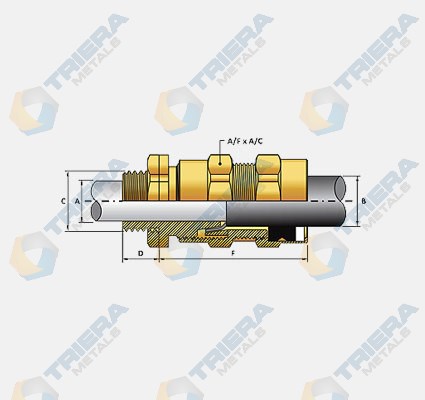

| GLAND SELECTION CHART | ||||||
| CODE | GLAND SIZE | THREAD SIZENPT ‘C’ | THREAD SIZEMETRIC ‘C’ | THREADLENGTH ‘D’ | CABLE RANGE | |
| MIN(A) | MAX(B) | |||||
| Triera-CW-20S16 | 20 | M20 | ½” | 10 | 6.6 | 13.5 |
| Triera-CW420S | 20S | M20 | 1/2” | 10 | 11.5 | 15.5 |
| Triera-CW420L | 20L | M20 | 1/2” | 10 | 14 | 20.5 |
| Triera-CW425S | 25S | M25 | 3/4′ | 10 | 18 | 24 |
| Triera-CW425L | 25L | M25 | 3/4′ | 10 | 20 | 27.2 |
| Triera-CW432 | 32 | M32 | 1” | 10 | 26.3 | 33.5 |
| Triera-CW440 | 40 | M40 | 1.1/4” | 15 | 32 | 40 |
| Triera-CW450S | 50S | M50 | 1.1/2” | 15 | 38.2 | 46.3 |
| Triera-CW450L | 50L | M50 | 1.1/2” | 15 | 44 | 52.6 |
| Triera-CW463S | 63S | M63 | 2” | 15 | 50.1 | 59 |
| Triera-CW463L | 63L | M63 | 2” | 15 | 56 | 65.3 |
| Triera-CW475S | 75S | M75 | 21.2” | 15 | 62 | 71.6 |
| Triera-CW475L | 75L | M75 | 21.2” | 15 | 68 | 78 |
| Triera-CW490 | 90 | M90 | 3” | 20 | 80.5 | 91 |
