We are India's leading manufacturer, supplier, and exporter of A2F Type Single Compression Cable Glands.

Technical Details
A2F TYPE SINGLE COMPRESSION CABLE GLAND
Cable Types Unarmoured
Application For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
Option Thread Metric, NPT, BSP & PG
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
IP Rating IP66 & IP68
Seal type Displacement type
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (silicone) : -60°C to +180°C
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer

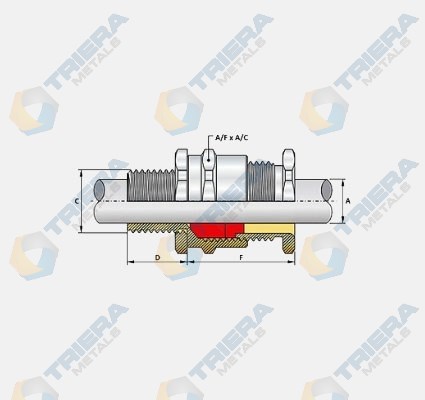

AVAILABLE ENTRY THREAD “C” (ALTERNATE METRIC THREAD LENGTHS AVAILABLE)

GLAND SELECTION CHART
CODE CABLEGLAND SIZE METRIC THREADLENGTH(METRIC) NPT THREADLENGTH (NPT) “D” CABLE DIAMETER “A” A/F A/C
MIN MAX
Triera-A2F-20S16 20S16 M16 15 3/8″ 20 3.2 8.7 24.5 27
Triera -A2F-20S 20S M20 15 1/2″ 20 6.2 11.7 24.5 27
Triera -A2F-20 20 M20 15 1/2″ 20 6.5 14 27 30
Triera -A2F-25 25 M25 15 3/4″ 21 11.2 20 36 40
Triera -A2F-32 32 M32 15 1″ 26 17.1 26.3 41 45
Triera -A2F-40 40 M40 15 1.1/4” 26 23.5 32.2 50 55
Triera -A2F-50S 50S M50 15 1.1/2” 26 31 38.2 55 60
Triera A2F-50L 50 M50 15 2″ 27 35.6 44 60 66
Triera A2F-63S 63S M63 15 2″ 27 41.5 49.9 70 77
Triera -A2F-63L 63 M63 15 2-1/2″ 40 47.3 55.9 75 82
Triera -A2F-75S 75S M75 15 2-1/2″ 40 54 61.9 84 92
Triera -A2F-75L 75 M75 15 – – 61.2 67.9 84 92
Triera -A2F-90 90 M90 24 3″ 42 66.6 79.9 108 118
Triera A2F-100 100 M100 24 3.1/2″ 44 76 91 115 125
