We are India's leading manufacturer, supplier, and exporter of A2 Cable Glands.
| Technical Details | |

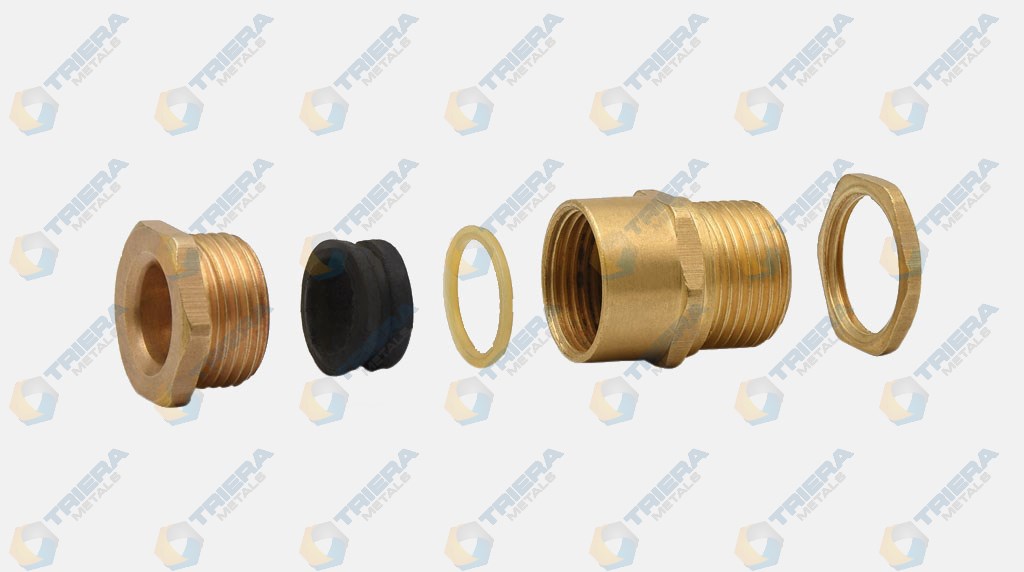

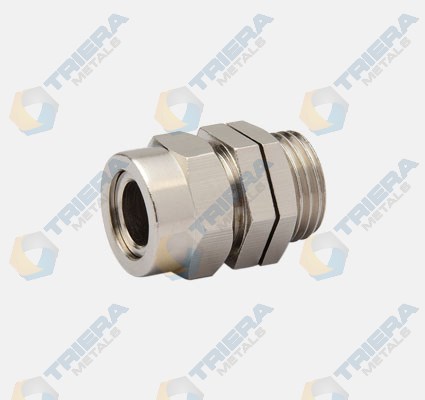

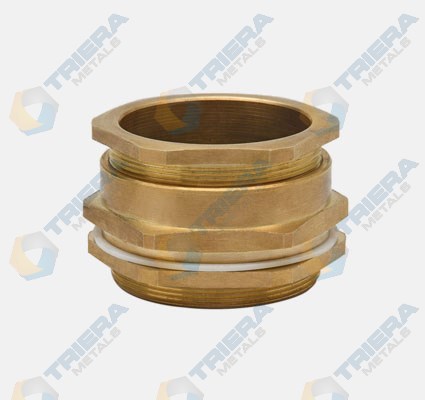

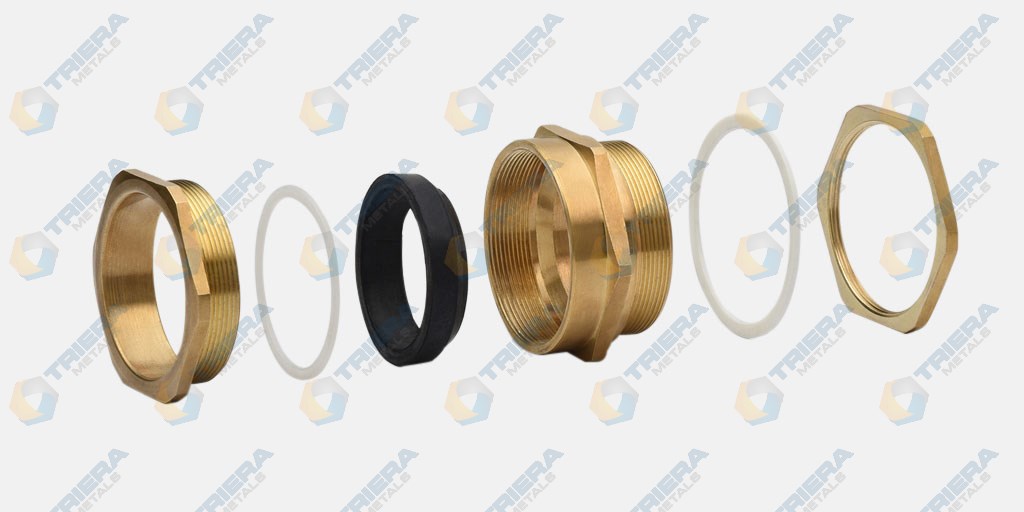

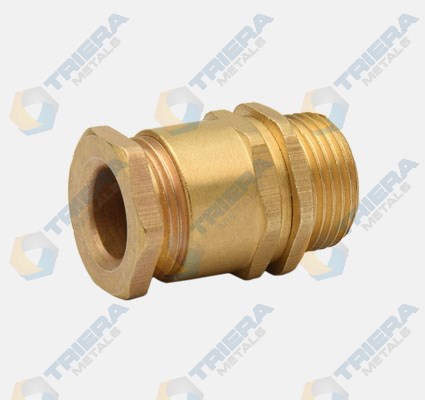

| A2 Type Single Compression Gland | |
| Cable Types | Unarmoured |
| Application | Brass gland for indoor and outdoor use with all types of unarmoured cable where it is essential to Provide IP-66 protection on the outer sheath of cable |
| Gland Material | Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082) |
| Option Thread | Metric, NPT, BSP & PG |
| IP Rating | IP66 |
| Seal Type | Weakback type |
| Operating Temperature | Standard Seals (Nitrile): -20°C To 80°C. on Request (Silicone) : – 60°C to +180°C |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |
| Accessories | PVC / LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer |
| GLAND SELECTION CHART | ||||||

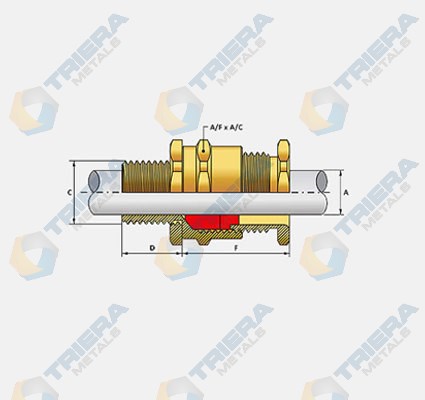

| CODE | GLAND SIZE | THREAD SIZE ‘C’ | THREAD LENGTH(D) | CABLE DIAMETER “A” | ||
| METRIC (ISO) | NPT | MIN | MAX | |||
| Triera-A2-20S | 20S | M20 | 1/2” | 15 | 8 | 11.5 |
| Triera-A2-20L | 20L | M20 | 1/2” | 15 | 11 | 13.5 |
| Triera-A2-25S | 25S | M25 | 3/4′ | 15 | 13 | 16.5 |
| Triera-A2-25L | 25L | M25 | 3/4′ | 15 | 16 | 19.5 |
| Triera-A2-32L | 32L | M32 | 1” | 15 | 24 | 27 |
| Triera-A2-40S | 40S | M40 | 1.1/4” | 20 | 26 | 29 |
| Triera-A2-40L | 40L | M40 | 1.1/4” | 20 | 30.5 | 34 |
| Triera-A2-50S | 50S | M50 | 1.1/2” | 20 | 33 | 38 |
| Triera-A2-50L | 50L | M50 | 2” | 20 | 38 | 44 |
| Triera-A2-63S | 63S | M63 | 2” | 20 | 44 | 50 |
| Triera-A2-63L | 63L | M63 | 2.1/2” | 20 | 49.5 | 55 |
| Triera-A2-75S | 75S | M75 | 2.1/2” | 20 | 54.5 | 61 |
| Triera-A2-75L | 75L | M75 | 3” | 20 | 62 | 68 |
| Triera-A2-90L | 90L | M90 | 3” | 20 | 70 | 80 |
| Triera-A2-100L | 100L | M100 | 3.1/2” | 25 | 82 | 90 |
